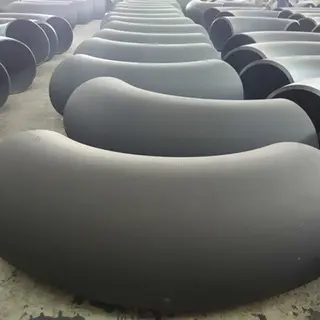

ASTM A420 Grade WPL6 Forged Elbow DN50 STD 90 Degree Seamless

ASTM A420 Grade WPL6 Forged Elbow DN50 STD 90 Degree Seamless

Key Specifications / Features

Model No.: DB-ELBOW-529
Hits: 110
China A420 Grade WPL6 Forged Elbow Manufacturer Derbo Offers ASTM A420 Grade WPL6 Forged Elbow, LTCS, Seamless, DN50 STD, 90 Degree, Oiled, Painting.
Request a quote

Tags

Detail Information

Type: Elbow.
Manufacture Method: Forged.
Standard and Material: ASTM A420 Grade WPL6.
Size: DN50 STD, 90 Degree.
Surface Treatment: Oiled/Painting.
Independence Inspection: Chemical Test, Mechanical Test.
Third Party Inspection: SGS, BV, INTERNET etc.
Application: Pipe Connection.
Payment Terms: TT/LC, West Union, Paypal, O/A.
Delivery Time: 7-25 Days after Receiving the Deposit.

Chemical Composition and Mechanical Property for ASTM A420
Steel Grade Chemical Composition Mechanical Performance
C Si Mn P(Max) S(Max) Cr Mo Tensile Strength Yield Strength
(Min)
Mpa Mpa
WPL6 0.30 0.15-0.40 0.5-1.35 0.035 0.040 0.30 0.12 415-655 240
Comment Form
Name*
E-mail*
Rate*
Comments*

Similar Products

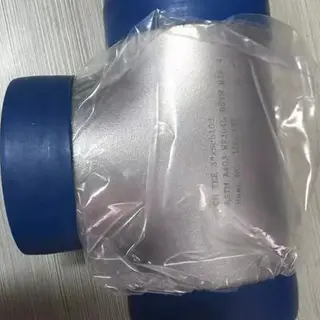

ASTM A420 Grade WPL6 Seamless Reducing Tee Forged 100 X 50 X 100 STD
ASTM A420 Grade WPL6 Seamless Reducing Tee Forged 100 X 50 X 100 STD

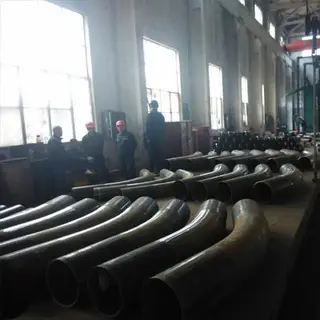

API 5L X65 Bend 9.53mm 90° Forged Seamless Black Painting
API 5L X65 Bend 9.53mm 90° Forged Seamless Black Painting

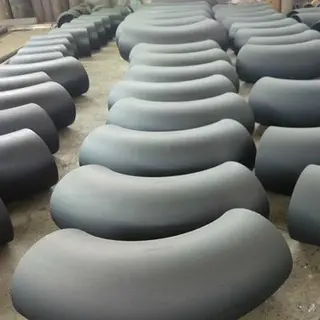

ASTM A105 ASME B16.11 Carbon Steel Elbow Forged 6 Inch 90 Deg
ASTM A105 ASME B16.11 Carbon Steel Elbow Forged 6 Inch 90 Deg

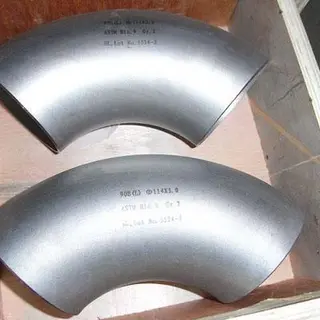

ASTM A182 304 90 Degree Elbow 1 Inch Schedule 40 Forged
ASTM A182 304 90 Degree Elbow 1 Inch Schedule 40 Forged

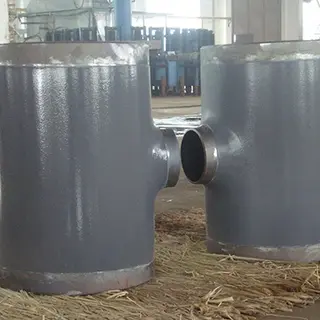

A234 WPB Carbon Steel Tee 20 Inch SCH STD Forged
